TECHNICAL SPECIFICATION
STANDARD ACC.:- 8” CHUCK PLATE, 2 NOS. DEAD CENTER, CENTER ADAPTER, TOOL POST KEY, CHANGE GEARSET ( IN & MM), MOTOR PULLY.
EXTRA STANDARD & ELECTRICALS ACC.:- STEADY REST, FOLLOW REST, FACE PLATE, CHUCK PLATE, CHUCK, ELECTRIC MOTOR, RE. SWITCH, MOTOR V-BELT.

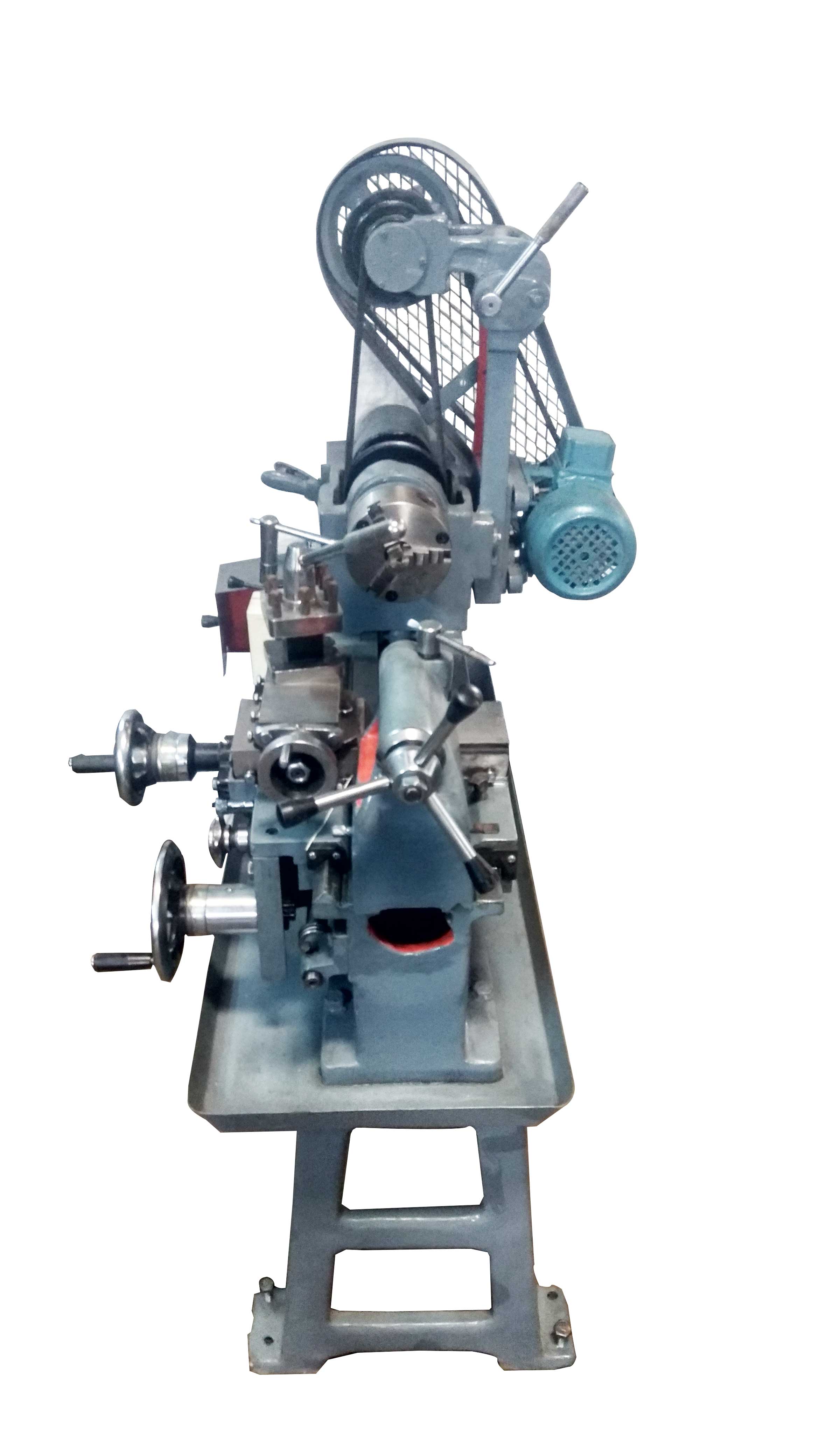

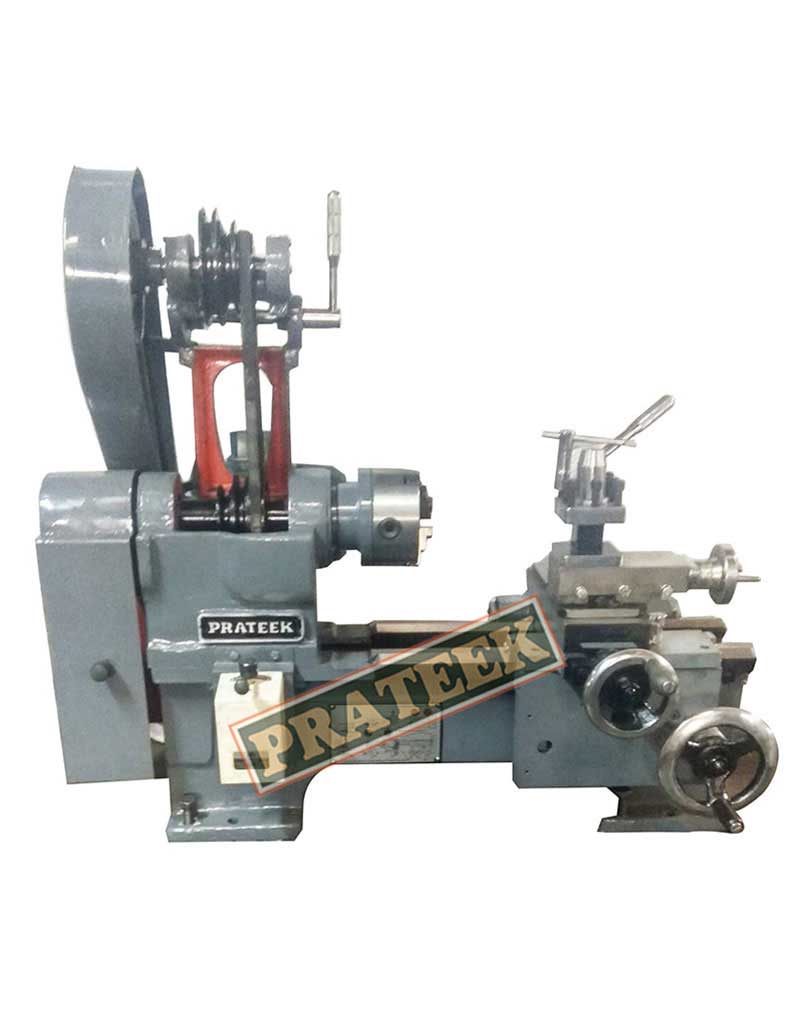

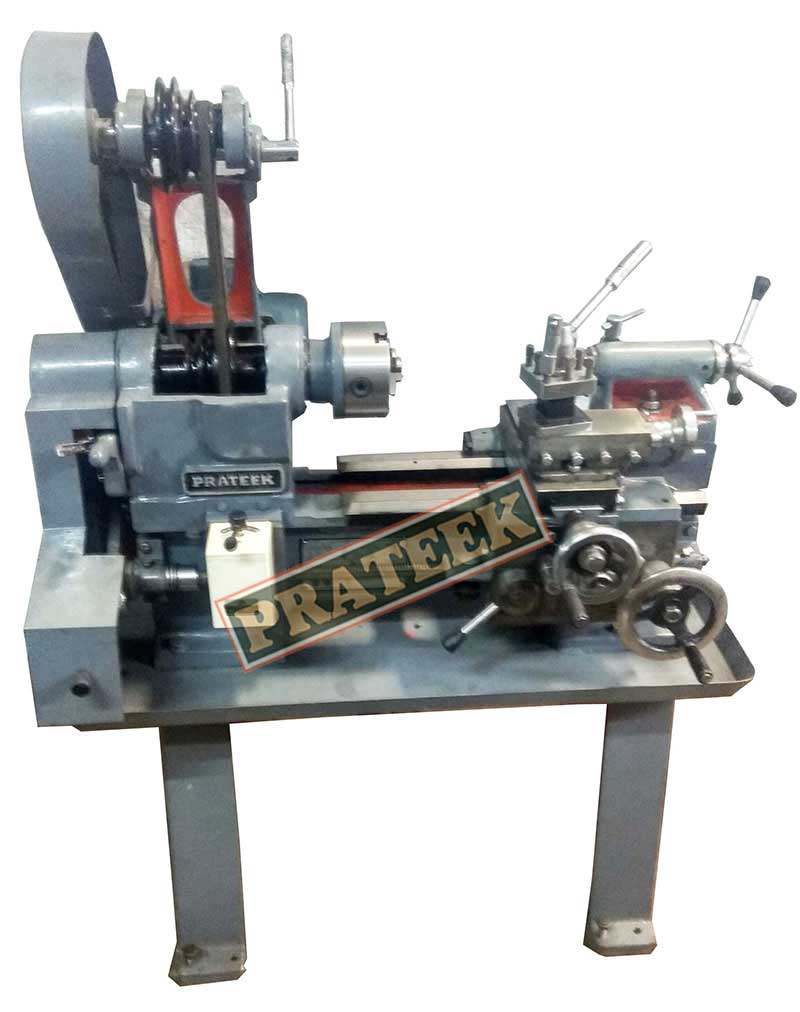

| 2.5’ “PRATEEK” LATHE MACHINE DEATIALS |
IN MM |
| LAYOUT |
HORIZONTAL |
| LENTH OF BED |
760 MM |
| WIDTH OF BED |
180 MM |
| ADMIN BETWEEN CENTER |
160 MM |
| HEIGHT OF CENTER OVER FLATBED WAYS |
165 MM |
| MAXIMUM SWING OVER BED |
320 MM |
| MAXIMUM SWING OVER CROSS SLIDE |
170 MM |
| SPINDLE BORE |
35 MM |
| TAIL STOCK RAM DIAMETER |
31 MM |
| LEAD SCREW DIAMETER |
22 MM |
| NO. OF SPINDLE SPEEDS |
3 |
| SPINDLE SPEED RANGE |
275 - 735 RPM |
| TAPPER OF CENTER IN HEAD & TAIL STOCK |
6 TPI |
| NO OF METRIC THREAD RANG |
05 TO 6 PICH |
| NO OF INCH THREAD RANG |
4 TO 45 TPI |
| POWER OF AC MOTOR 3 PHASE (1440 RPM) |
1 HP |
| HEAD STOCK BEARING |
32210 & 32209 |
| COUNTER BEARING |
6205 |
| HEAD STOCK V BELT |
A 34 |
| MOTOR V BELT |
A 50 |
| APPROX WEIGHT |
225 KG |
