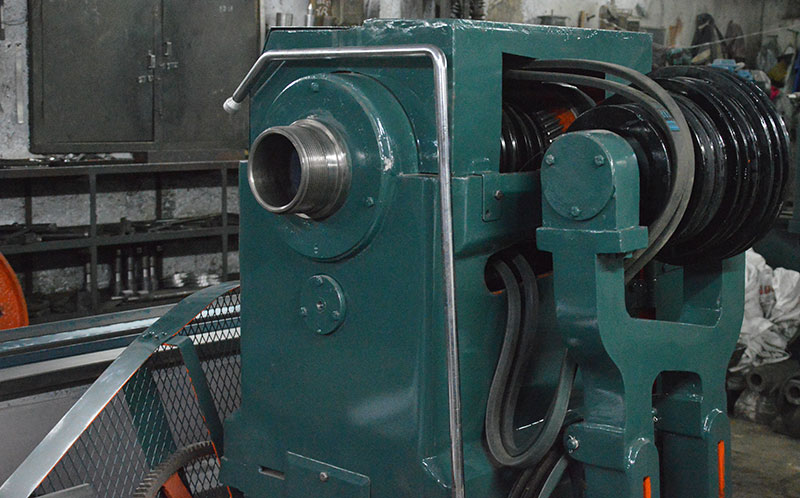

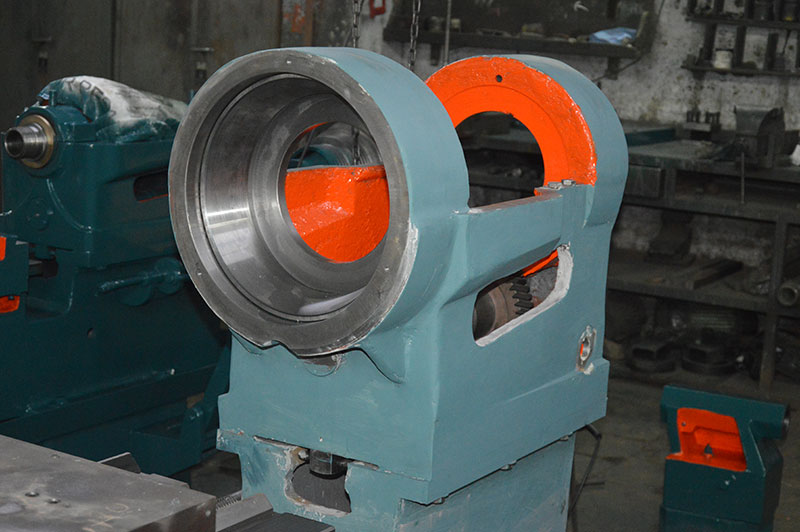

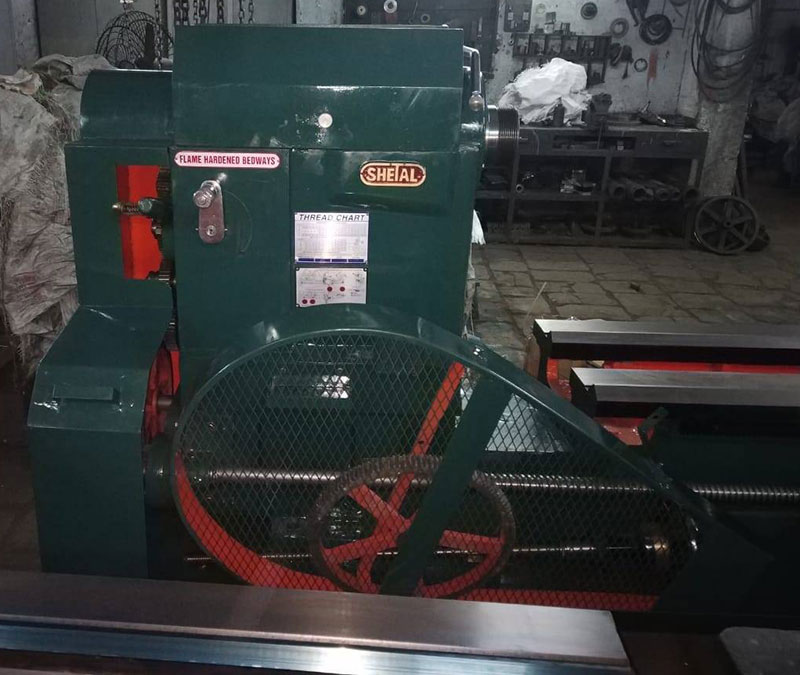

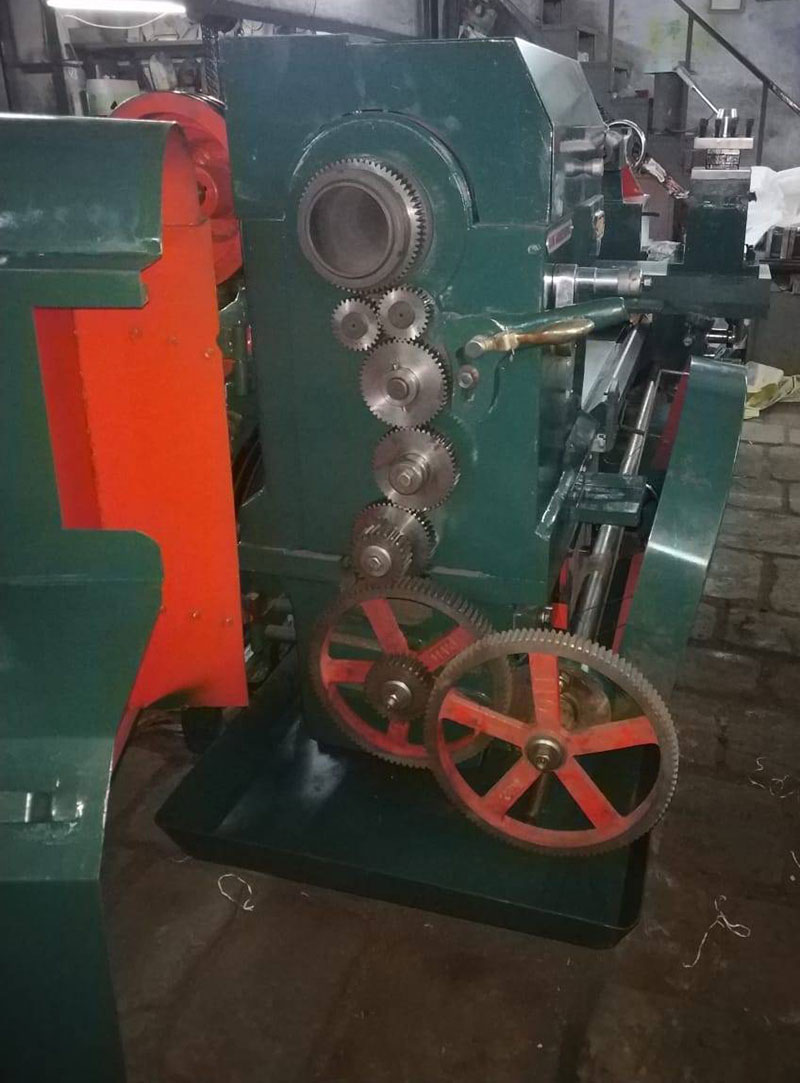

| Description | SHETAL EOL NO. 1 | SHETAL EOL NO. 2 | SHETAL EOL NO. 3 | SHETAL EOL NO. 4 | SHETAL EOL NO. 5 | SHETAL EOL NO. 6 | SHETAL EOL NO. 7 | SHETAL EOL NO. 8 | SHETAL EOL NO. 9 | SHETAL EOL NO. 10 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LENGTH OF BED | 7' (2130) |
9' (2740) |
10' (3040) | 12' (3650) | 14' (4260) | 16' (4870) | 18' (5480) | 20' (6090) | 22' (6700) | 24' (7300) | |
| Max. admit between Centers | 18"/20" Bed Width | 2'8" (810) | 4'8" (1420) | 5'8" (1725) | 7'8" (2335) | 9'8" (2945) | 11'8" (3555) | 13'8" (4165) | 15'8" (4775) | 17'8" (5385) | 19'8" (5995) |
| 24" Bed Width | 1'9" (535) | 3'9" (1145) | 4'9" (1450) | 6'9" (2060) | 8'9" (2670) | 10'9" (3280) | 12'9" (3890) | 14'9" (4500) | 16'9" (5100) | 18'9" (5700) | |
| Max. swing over Cross Slide Dia. | 18"/20" Bed Width | 18-1/2" (455) | 24" (610) | 28" (715) | NA | NA | |||||
| 24" Bed Width | NA | 24" (610) | 28" (710) | 32" (810) | 36" (915) | ||||||
| Spindle Hole | Standard: 3-1/8" | Optinal: 4-1/8" (104), 5-1/8" (130), 6-1/8" (156) & 8-1/8" (206) | ||||||||||
| Bed Type | 2V & 2 Flat | ||||||||||
| Max. swing over Bed Dia. | 29-1/4" (745) | 35" (890) | 39" (990) | 43" (1090) | 47" (1190) | ||||||
| Height of center | 15" (381) | 18" (457) | 20" (508) | 22" (558) | 24" (610) | ||||||
| Max. swing without Gap Dia. | 43" (1090) | 49" (1250) | 53" (1350) | 57" (1450) | 61" (1550) | ||||||
| Width of Bed | 18" (457) | 20" (508) | 24" (610) | ||||||||
| Tool Post Size (Square) | 6" x 6" | 7" x 7" | |||||||||
| Tail Stock Spindle Dia. | 3" (76) | ||||||||||
| Taper of Centers | MT-5 | ||||||||||
| Tail Stock Spindle Travel | 10" (250) | 13" (330) | |||||||||
| Nos. of Spindle Speed & Range | 8 (25 to 350 RPM) | ||||||||||
| Tool Shank Section | 38 x 38 | ||||||||||
| Cross Slide Travel | 18-1/2" (470) | 20-1/2" (520) | 22" (560) | ||||||||
| Width of Gap in front of Face Plate | 9" (225) | ||||||||||
| Compound Slide Travel | 8" (200) | 10" (250) | |||||||||
| No. of DP Threads & Range | Optional: 11 (6 to 60) | ||||||||||
| Lead Screw Dia. & Pitch | 2" (50) / 2 TPI | ||||||||||
| No. of Inch Threads & Range | 20 / 1 to 20 TPI | Optional: Norton Gear Box – 44 / 2 to 60 TPI | ||||||||||
| No. of Metric. Threads & Range | 13 / 1 to 6 MMP | Optional: Norton Gear Box – 24 / 0.5 to 15 MMP | ||||||||||
| No. of Module Threads & Range | Optional: 12 (0.3 to 2) | ||||||||||
| No. of Longitudinal Feeds | 33 / 0.008 – 2 mm/rev | Optional: Norton Gear Box – 68 / 0.034 – 1.2 mm/rev | ||||||||||
| No. of Transverse Feeds | 33 / 0.02 – 0.48 mm/rev | Optional: Norton Gear Box – 68/0.008 – 0.28 mm/rev | ||||||||||
| Power of AC Motor (HP) | 5 | 5 | 5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 10 | 10 | |
| Weight (Approx. in kgs) | 1600 | 1700 | 2100 | 2500 | 2900 | 3400 | 3800 | 4200 | 4600 | 5000 | |
